Fall in love again

Being a loyal Lotus Elise owner (and driver!) for almost 10 years - it means a lot to me and I proudly consider myself a “car guy” with tons of passion about cars! The sophisticate and versatile ADD-111R - a special 10th birthday gift I designed, coded, and tuned with all the passions for my beloved Elise. I feel y'all Lotus enthusiasts will also like it so check it out.

Download (or Search Shihwei Yu from the main Google Play Store)






It's more than from point A to B

The ADD-PRO (same features as ADD-111R except removed the Lotus Elise gear info) perfectly complements my GLC43 coupe and C350 for any adventure trip and boring commute. Easily configurable to what you like and it memorizes your preference. Swipe thru many modes that suit you best. An 0-60 mph (or 0-100 km/h) test run is there for a little fun. And the trip summary/trip records save some great memory (or bragging story) for you.

The ADD-LITE keeps only the most frequently used NORMAL and EASY modes – the ADD-LITE gives the quick glance for speed and convenient over speed warning. It’s simply a little tool reduces the stress of your driving. (Perfect gift for the ones you loved)

Download ADD-PRO (or Search Shihwei Yu from the main Google Play Store)
Download ADD-LITE (or Search Shihwei Yu from the main Google Play Store)






Timeless Beauty (Click to see full size picture)






Features

Modes/Features

ADD-LITE

ADD-PRO

ADD-111R

Real time speedometer

X

X

X

Real time RPM (in graphic and numeric)

X

X

X

Configurable engine red-line RPM (to match your car)

X

X

X

Max. RPM indicator

X

X

X

Dynamic red-line as engine warm up reminder

X

X

X

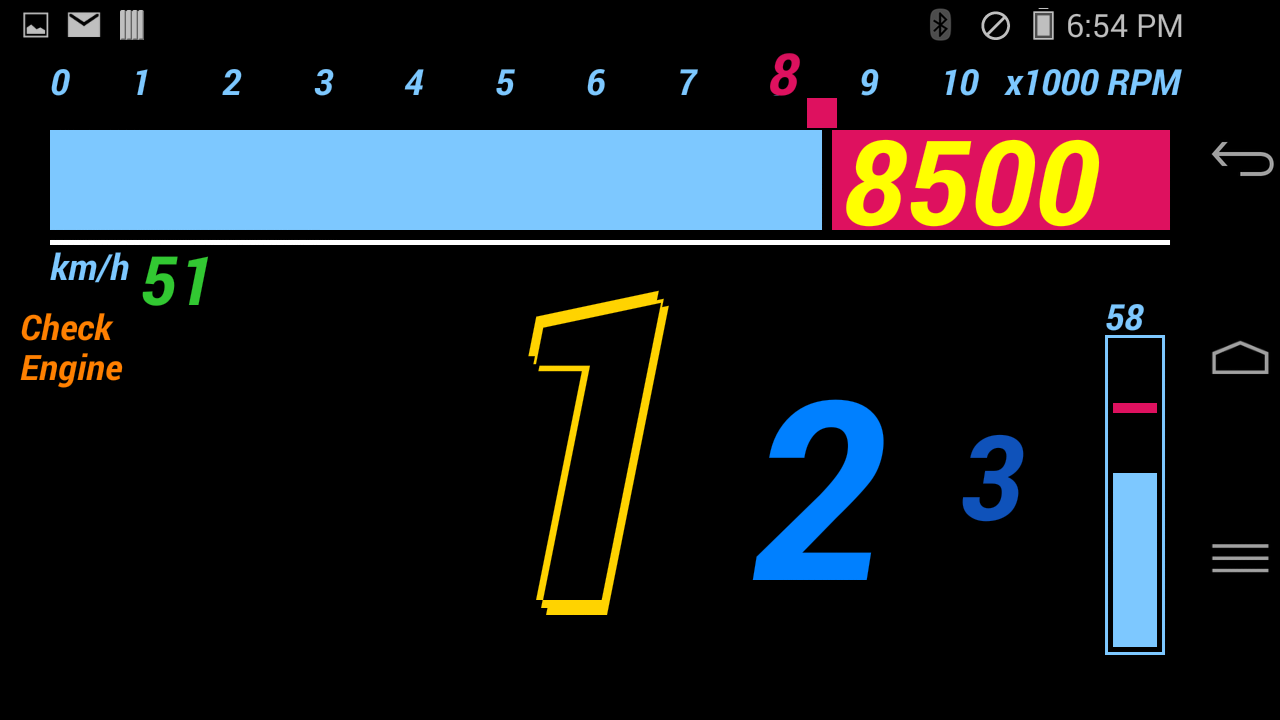

3-step sequential shift indicator (matching RPM red-line)

X

X

X

Throttle position (relative %; in graphic and numeric)

X

X

X

Coolant temperature (in C or F)

X

X

X

Fuel level (in %)

X

X

X

Voltage

X

X

X

Clock

X

X

X

One touch switching between mph and km/h

X

X

X

Configurable speed alert with one touch enabled/disabled

X

X

X

One touch reset trip info

X

X

X

Auto loading preference / SETUP configuration

X

X

X

Swipe to change display modes

X

X

X

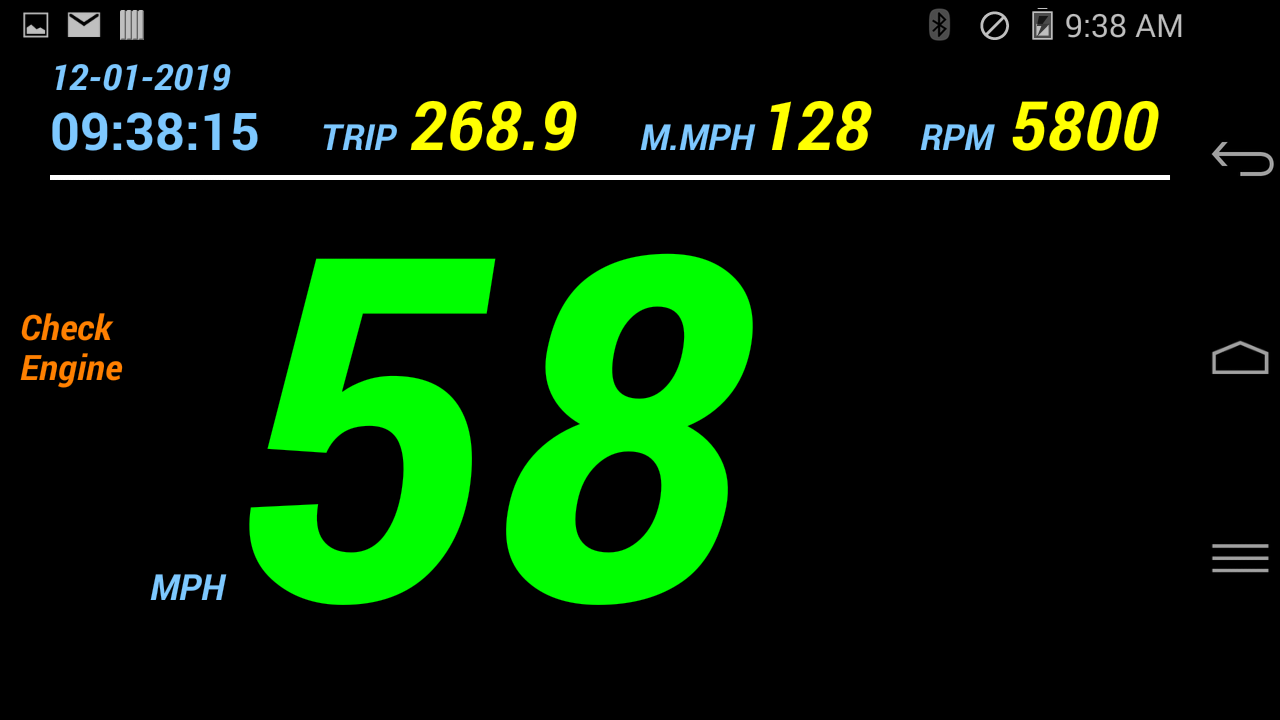

Easy

X

X

X

Normal

X

X

X

RACE





X

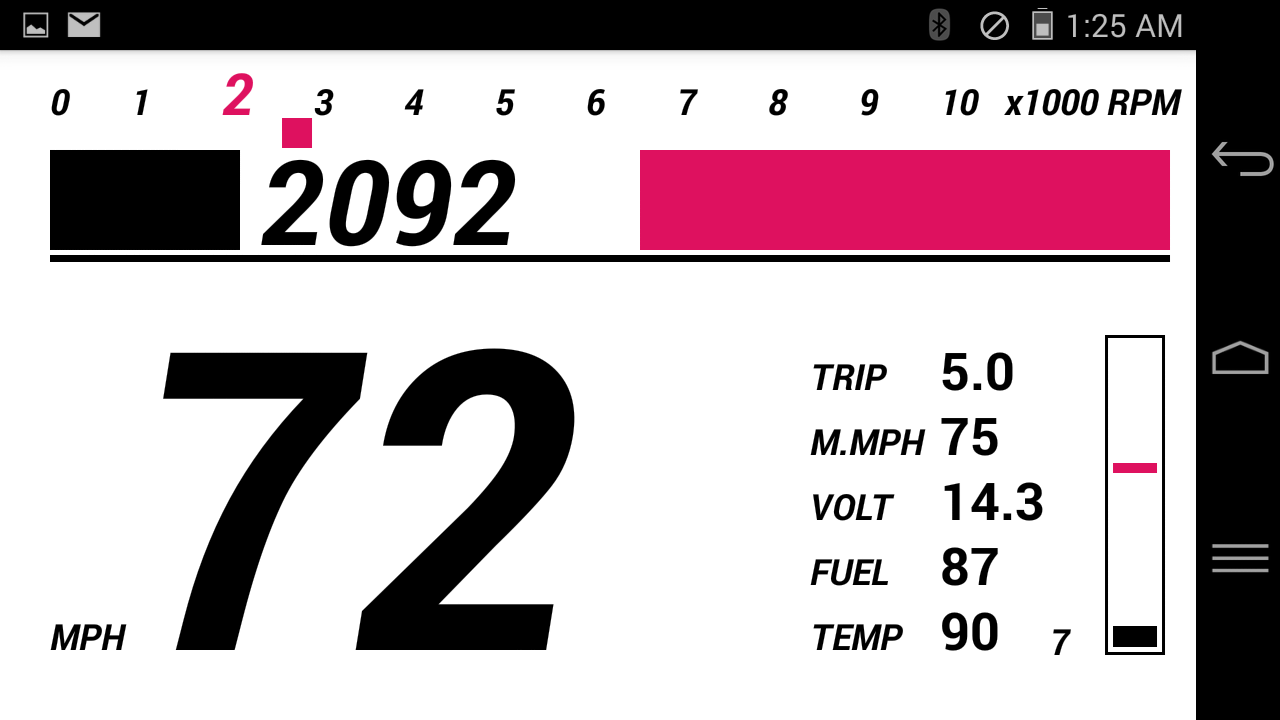

Sunlight



X

X

0-60 mph (0-100 km/h) test



X

X

Trip Summary



X

X

Trip Start / Stop



X

X

Trip Save



X

X

Start time/date



X

X

Elapsed time



X

X

Trip distance



X

X

Max speed



X

X

Max throttle (relative)



X

X

Max RPM



X

X

Best 0-60 mph (0-100 km/h)



X

X

Trip Records



X

X

Swipe up/down browsing



X

X

Record Delete



X

X

Google Play Store link

ADD-LITE

ADD-PRO

ADD-111R






Quick User Guide

1. Plug the Bluetooth ELM327 based OBD2 dongle into your car. (recommending the OBD2 dongle with power switch so you can turn it full off when not using it)

2. In your android phone, go to Setting - Bluetooth: turn on Bluetooth, finding the OBD2 dongle and pairing it (entering 1234 or 0000 if you are asked for passcode)

3. Once the OBD2 is successfully paired, launch the ADD-PRO and watch the cool opening welcome screen. Read and commit to the safety warning message.

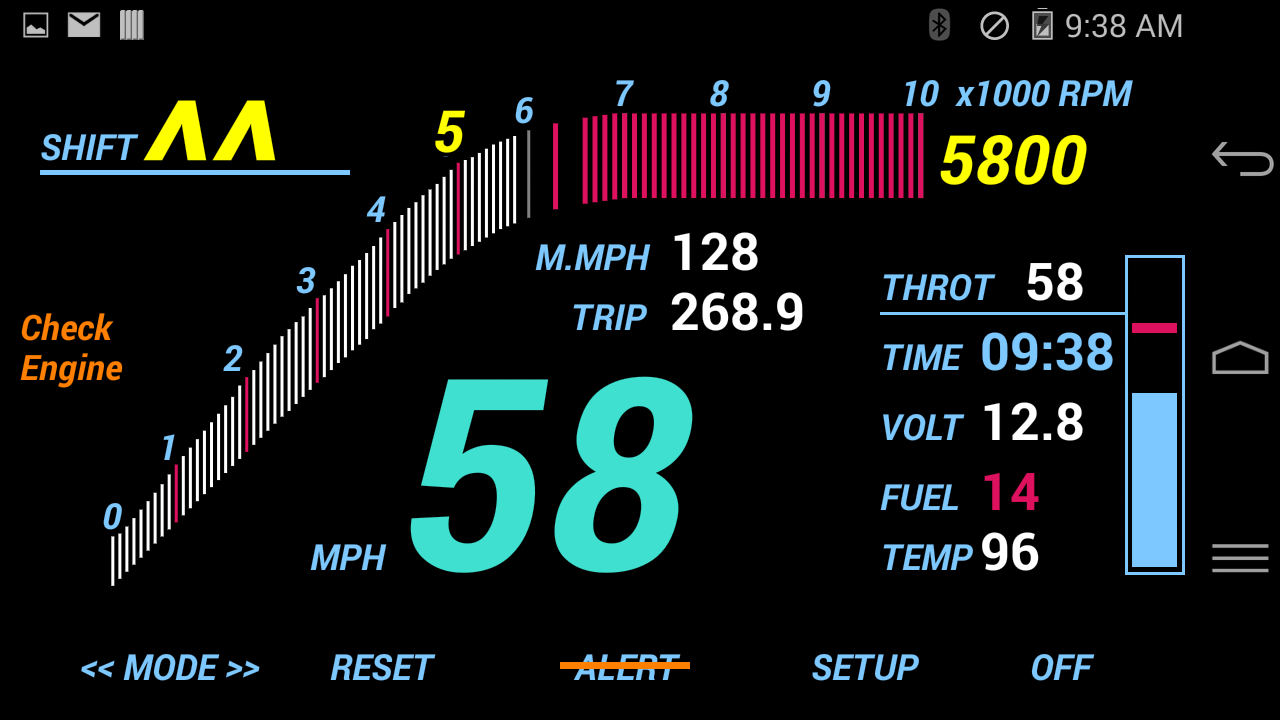

4. The ADD-PRO shall start showing the RPM, coolant temp, voltage, fuel...information of your car is a few seconds. You are ready to enjoy the ADD-PRO.

5. Click the MPH to switch to imperial system (mph) or km/h to metric system for your local system.

6. You can touch the SETUP to configure the max speed alert and red-line RPM to match your car. NOTE: for safety, the Setup is disabled if car is moving.

7. You can turn on (or turn off) the speed alert by simply touch the ALERT button.

8. You can reset the trip count by touch the RESET button. NOTE this count as resetting the trip info so the max. speed, max. RPM, and max throttle... will also be reset.

9. You can change modes by simply swipe to left of right.

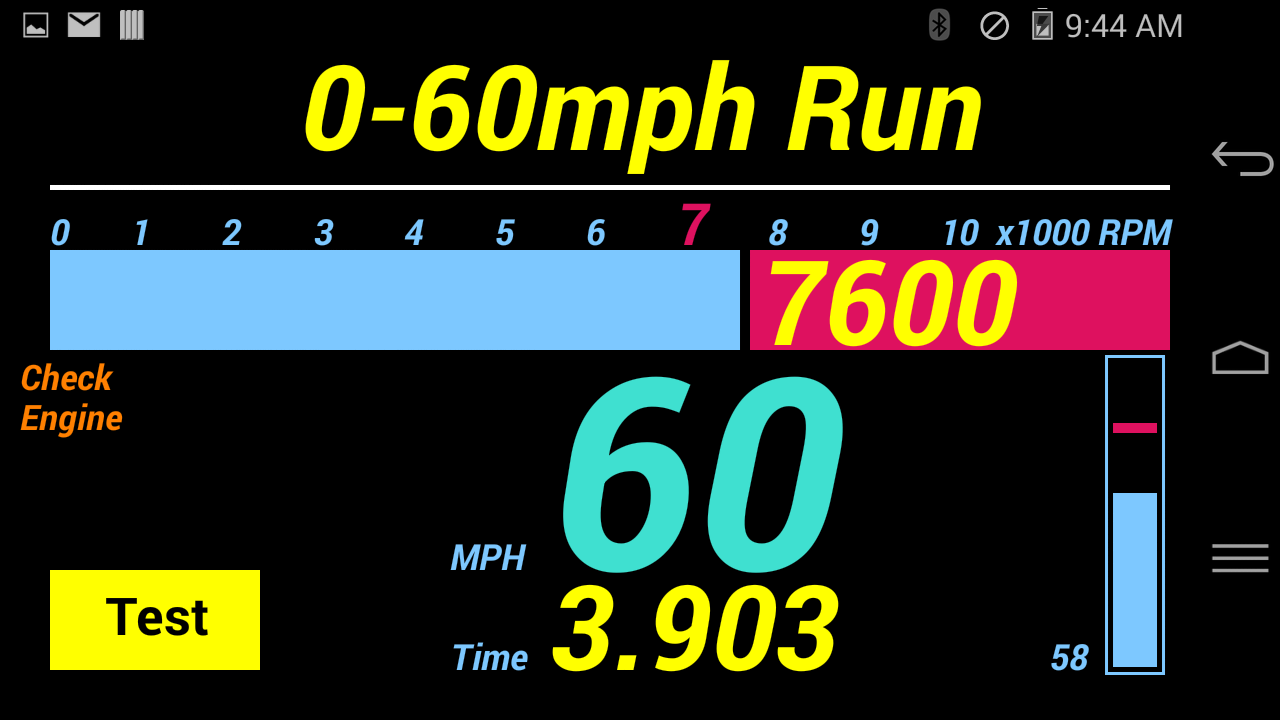

10. NOTE: 0-60mph (0-100km/h) test mode can only activate when the engine is warmed up (when coolant temperature is at least 80 degree C. So it will skip to next mode if your coolant is less than 80C.

11. The trip summary mode comes with time keeping - you can use it to record lap time by touch SAVE button. You can stop the timing as concluding the trip and SAVE it as well. The best 0-60mph run will be also records here if it's available.

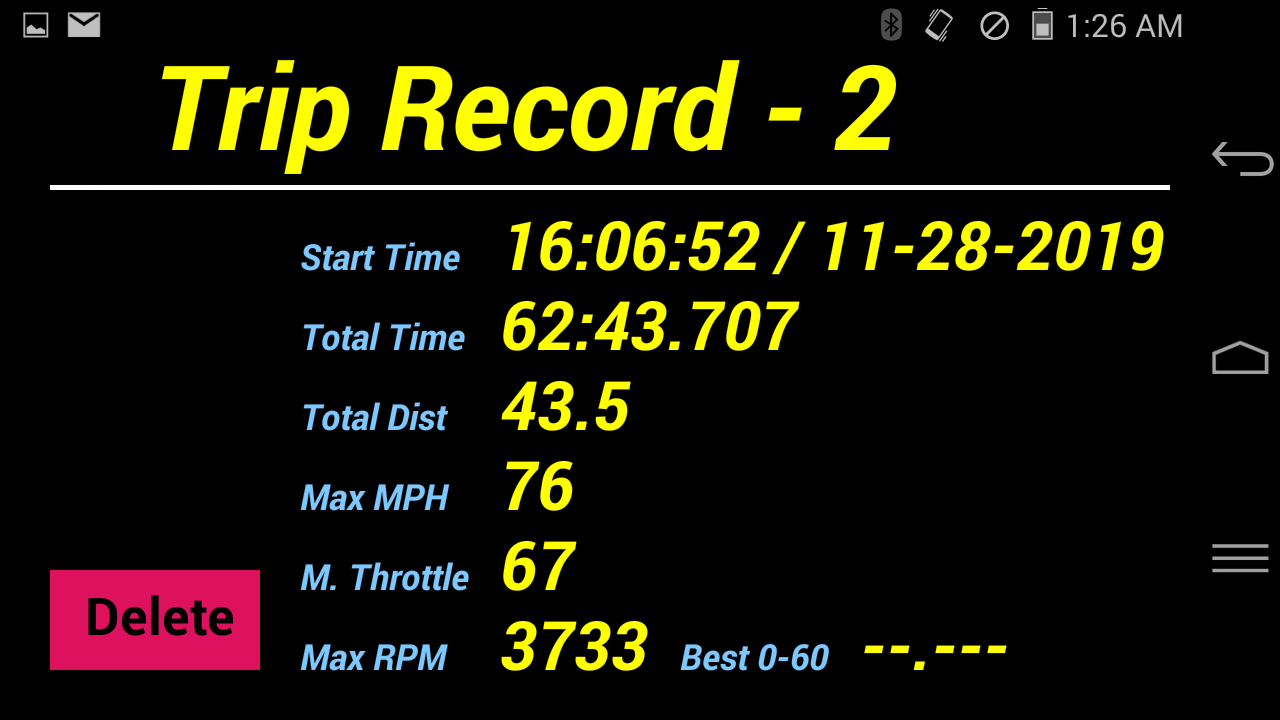

12. The trip records mode shows all the trip (or lap) information you had saved. You can scroll the records by swipe up / down. Touch the DELETE button to delete a record you don't need.

13. Touch the "?" for short help and email contact for supports and comments.

14. Touch OFF to exit the ADD-PRO when you have done using the ADD-PRO. (Turn off the OBD2 or unplug it to save car's battery)

15. Your preference / setting used in last time will be remembered and applied automatically when you launch the ADD-PRO next time (set it once and use it as a real tool everyday!)

16. Older model of cars or older model of OBD2 may restrict and limit certain information NOT available for displaying.






Contact

We value your comments. Email us at aburastar888@gmail.com
